M775

Severe Service

On/Off-Highway Drive Axle Radial

When you operate in tough terrain, you can’t afford anything that doesn’t stand up to the punishment. The Bridgestone M775 starts with extra-deep tread for long original life. This workhorse is built to resist cuts and chips and reduce stone retention while promoting traction both on and off road. Under severe service conditions, the M775 will help you move forward with confidence.

Specifications

Selection

Choose Size (Ply/Star Rating)

Choose a Unit

Standard

Metric

Details

Application: Severe Service
Article Number: 157767
Tire Size: 11R24.5
Compound
Ply/Star Rating: 16
Tread Depth (32nds) (mm): 33 26.1
Load Range: H
Overall Width (in) (mm): 10.9 277
Overall Diameter (in) (mm): 44.8 1138
Max. Tire Load Dual (lbs) (kg): 6610 3000
Max. Speed (mph) (km/h): 65 105
Meas. Rim (in) (mm): 8.25 210
Overall Width Loaded (in) (mm): 12 305
Static Loaded Radius (in) (mm): 20.7 526
Max. Tire Load Single (lbs) (kg): 7160 3250
Inflation Pressure (psi) (kPa): 120 830
Revolutions Per (mile) (km): 464 288

Application: Severe Service
Article Number: 202604
Tire Size: 11R22.5
Compound
Ply/Star Rating: 16
Tread Depth (32nds) (mm): 33 26.1
Load Range: H
Overall Width (in) (mm): 10.9 277
Overall Diameter (in) (mm): 42.8 1087
Max. Tire Load Dual (lbs) (kg): 6005 2725
Max. Speed (mph) (km/h): 65 105
Meas. Rim (in) (mm): 8.25 210
Overall Width Loaded (in) (mm): 12 305
Static Loaded Radius (in) (mm): 19.9 505
Max. Tire Load Single (lbs) (kg): 6610 3000
Inflation Pressure (psi) (kPa): 120 830
Revolutions Per (mile) (km): 486 302

Application: Severe Service
Article Number: 202621
Tire Size: 12R22.5
Compound
Ply/Star Rating: 16
Tread Depth (32nds) (mm): 34 26.9
Load Range: H
Overall Width (in) (mm): 11.6 295
Overall Diameter (in) (mm): 43.8 1113
Max. Tire Load Dual (lbs) (kg): 6780 3075
Max. Speed (mph) (km/h): 65 105
Meas. Rim (in) (mm): 9 229
Overall Width Loaded (in) (mm): 12.8 325
Static Loaded Radius (in) (mm): 20.3 516
Max. Tire Load Single (lbs) (kg): 7390 3350
Inflation Pressure (psi) (kPa): 120 830
Revolutions Per (mile) (km): 474 295

Specialized Features

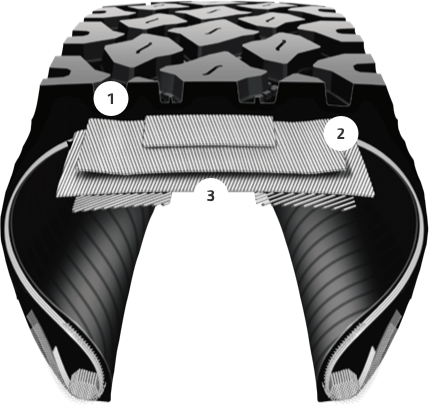

Tread

Extra-Deep Tread: At more than 32/32nds, the deep block design delivers long original tread life
Cap/Base Compounding: Delivers longer wear life while providing resistance to cuts, chips, tearing and irregular wear
Split-Belt Construction: Provides flexibility in maneuvering over rough terrain, delivering extra casing protection for long-lasting durability
