L315

Severe Service

On/Off-Highway Wide Base Drive Axle Radial

The key words behind this rugged tire are “performance,” “enhanced” and “robust.” It’s engineered for the tough terrain and extra duty of all-wheel-drive vehicles like front-discharge cement mixers, dump trucks and specialty oil field rigs. Featuring an aggressive lug tread design and an enhanced tread compound that contributes to long original tread life, you’ll be on solid ground on or off highway with the wide-base L315.

Specifications

Selection

Choose Size (Ply/Star Rating)

Choose a Unit

Standard

Metric

Details

Application: Severe Service
Article Number: 199986
Tire Size: 445/65R22.5
Compound
Ply/Star Rating: 20
Tread Depth (32nds) (mm): 30 24.1
Load Range: L
Overall Width (in) (mm): 17.9 455
Overall Diameter (in) (mm): 46.4 1179
Max. Tire Load Dual (lbs) (kg)
Max. Speed (mph) (km/h): 65 105
Meas. Rim (in) (mm): 13 330
Overall Width Loaded (in) (mm): 19.7 500
Static Loaded Radius (in) (mm): 21.3 541
Max. Tire Load Single (lbs) (kg): 12300 5600
Inflation Pressure (psi) (kPa): 120 830
Revolutions Per (mile) (km): 448 278

Application: Severe Service
Article Number: 241354
Tire Size: 385/65R22.5
Compound
Ply/Star Rating: 18
Tread Depth (32nds) (mm): 30 23.8
Load Range: J
Overall Width (in) (mm): 15.3 389
Overall Diameter (in) (mm): 43.4 1102
Max. Tire Load Dual (lbs) (kg)
Max. Speed (mph) (km/h): 65 105
Meas. Rim (in) (mm): 11.75 298
Overall Width Loaded (in) (mm): 16.8 427
Static Loaded Radius (in) (mm): 20 508
Max. Tire Load Single (lbs) (kg): 9370 4250
Inflation Pressure (psi) (kPa): 120 830
Revolutions Per (mile) (km): 479 298

Application: Severe Service
Article Number: 241371
Tire Size: 425/65R22.5
Compound
Ply/Star Rating: 20
Tread Depth (32nds) (mm): 30 23.8
Load Range: L
Overall Width (in) (mm): 16.2 411
Overall Diameter (in) (mm): 45.3 1151
Max. Tire Load Dual (lbs) (kg)
Max. Speed (mph) (km/h): 65 105
Meas. Rim (in) (mm): 12.25 311
Overall Width Loaded (in) (mm): 17.8 452
Static Loaded Radius (in) (mm): 20.8 528
Max. Tire Load Single (lbs) (kg): 11400 5150
Inflation Pressure (psi) (kPa): 120 830
Revolutions Per (mile) (km): 459 285

Application
Article Number: 262986
Tire Size: 12.00R24
Compound
Ply/Star Rating: 18
Tread Depth (32nds) (mm): 40 31.5
Load Range: J
Overall Width (in) (mm): 12.6 320
Overall Diameter (in) (mm): 49.4 1255
Max. Tire Load Dual (lbs) (kg): 8540 3875
Max. Speed (mph) (km/h): 50 80
Meas. Rim (in) (mm): 8.5 216
Overall Width Loaded (in) (mm): 13.8 351
Static Loaded Radius (in) (mm): 22.8 579
Max. Tire Load Single (lbs) (kg): 9370 4250
Inflation Pressure (psi) (kPa): 120 830
Revolutions Per (mile) (km): 421 261

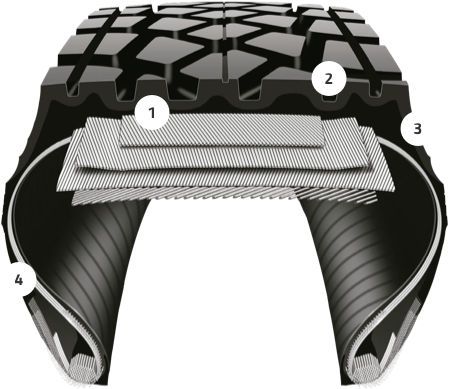

Specialized Features

Tread

Cap/Base Compounding: Delivers long wear life while providing resistance to cuts, chips, tearing and irregular wear
Optimized Tread Angles: Helps prevent stones and job site debris from becoming trapped within the tread, enhancing durability and retreadability
Reinforced Sidewall & Shoulder Protection: Resists casing damage for improved durability and retreadability
Optimized Casing Construction: Helps control casing growth, providing a better footprint for long wear life and improved irregular wear resistance, casing durability and retreadability
