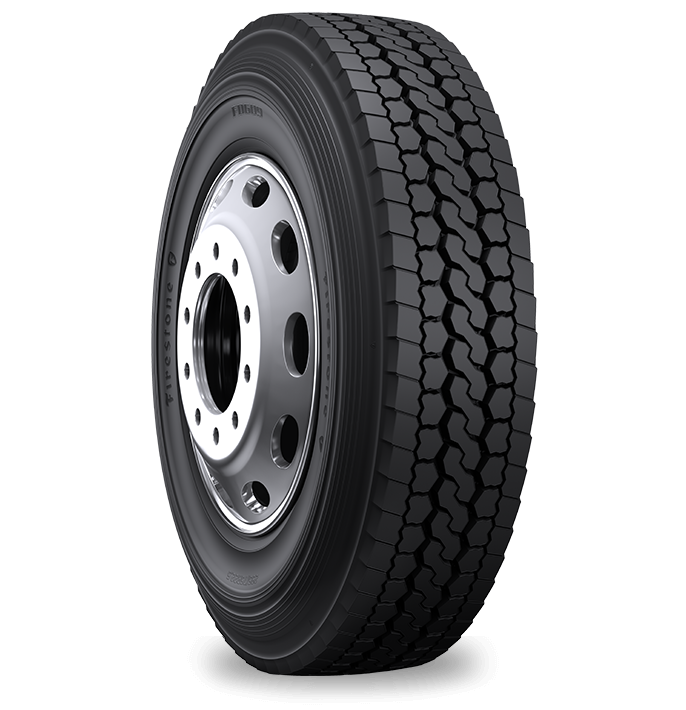

FS509

Truckload

Building on a long legacy of dependable value, Firestone introduces the FS509 long haul steer tire that combines the proven tread design of Firestone with a Bridgestone-engineered casing for unbeatable treadwear and mileage plus the additional benefits of casing durability and retreadability.

Specifications

Selection

Choose Size (Ply/Star Rating)

Choose a Unit

Standard

Metric

Details

Application: Truckload
Article Number: 13823
Tire Size: 285/75R24.5
Compound
Ply/Star Rating: 14
Tread Depth (32nds) (mm): 19 14.9
Load Range: G
Overall Width (in) (mm): 11.3 287
Overall Diameter (in) (mm): 41.4 1052
Max. Tire Load Dual (lbs) (kg): 5675 2575
Max. Speed (mph) (km/h): 75 121
Meas. Rim (in) (mm): 8.25 210
Overall Width Loaded (in) (mm): 12.4 315
Static Loaded Radius (in) (mm): 19.4 493
Max. Tire Load Single (lbs) (kg): 6175 2800
Inflation Pressure (psi) (kPa): 110 760
Revolutions Per (mile) (km): 502 312

Application: Truckload
Article Number: 13825
Tire Size: 11R24.5
Compound
Ply/Star Rating: 14
Tread Depth (32nds) (mm): 19 14.7
Load Range: G
Overall Width (in) (mm): 11.4 290
Overall Diameter (in) (mm): 43.1 1095
Max. Tire Load Dual (lbs) (kg): 6005 2725
Max. Speed (mph) (km/h): 75 121
Meas. Rim (in) (mm): 8.25 210
Overall Width Loaded (in) (mm): 12.5 318
Static Loaded Radius (in) (mm): 20.2 513
Max. Tire Load Single (lbs) (kg): 6610 3000
Inflation Pressure (psi) (kPa): 105 720
Revolutions Per (mile) (km): 481 299

Application: Truckload
Article Number: 13816
Tire Size: 295/75R22.5
Compound
Ply/Star Rating: 14
Tread Depth (32nds) (mm): 19 14.9
Load Range: G
Overall Width (in) (mm): 11.5 292
Overall Diameter (in) (mm): 40.2 1021
Max. Tire Load Dual (lbs) (kg): 5675 2575
Max. Speed (mph) (km/h): 75 121
Meas. Rim (in) (mm): 8.25 210
Overall Width Loaded (in) (mm): 12.6 320
Static Loaded Radius (in) (mm): 18.8 478
Max. Tire Load Single (lbs) (kg): 6175 2800
Inflation Pressure (psi) (kPa): 110 760
Revolutions Per (mile) (km): 516 321

Application: Truckload
Article Number: 13817
Tire Size: 11R22.5
Compound
Ply/Star Rating: 14
Tread Depth (32nds) (mm): 19 14.7
Load Range: G
Overall Width (in) (mm): 11.3 287
Overall Diameter (in) (mm): 41.3 1049
Max. Tire Load Dual (lbs) (kg): 5840 2650
Max. Speed (mph) (km/h): 75 121
Meas. Rim (in) (mm): 8.25 210
Overall Width Loaded (in) (mm): 12.5 318
Static Loaded Radius (in) (mm): 19.2 488
Max. Tire Load Single (lbs) (kg): 6175 2800
Inflation Pressure (psi) (kPa): 105 720
Revolutions Per (mile) (km): 503 313

Application: Truckload
Article Number: 12392
Tire Size: 295/75R22.5
Compound
Ply/Star Rating: 16
Tread Depth (32nds) (mm): 19 14.9
Load Range: H
Overall Width (in) (mm): 11.5 292
Overall Diameter (in) (mm): 40.2 1021
Max. Tire Load Dual (lbs) (kg): 6610 3000
Max. Speed (mph) (km/h): 75 121
Meas. Rim (in) (mm): 8.25 210
Overall Width Loaded (in) (mm): 12.6 320
Static Loaded Radius (in) (mm): 18.8 478
Max. Tire Load Single (lbs) (kg): 7160 3250
Inflation Pressure (psi) (kPa): 123 850
Revolutions Per (mile) (km): 516 321

Application
Article Number: 20297
Tire Size: 11R22.5
Compound
Ply/Star Rating: 16
Tread Depth (32nds) (mm): 19
Load Range: H
Overall Width (in) (mm): 0
Overall Diameter (in) (mm): 0
Max. Tire Load Dual (lbs) (kg)
Max. Speed (mph) (km/h): 0
Meas. Rim (in) (mm): 0
Overall Width Loaded (in) (mm): 0
Static Loaded Radius (in) (mm): 0
Max. Tire Load Single (lbs) (kg)
Inflation Pressure (psi) (kPa)
Revolutions Per (mile) (km): 0

Product Sheet

Specialized Features

Features & Benefits

Shoulder-Wear Protector: Helps minimize irregular wear at the shoulder ribs for long tread life
STRESS RELIEF SIPES: Fight irregular wear along main ribs by absorbing rib edge stresses in the footprint for long, even wear
CONTINUOUS SHOULDER RIB: Offers long, even wear and reduced rolling resistance
