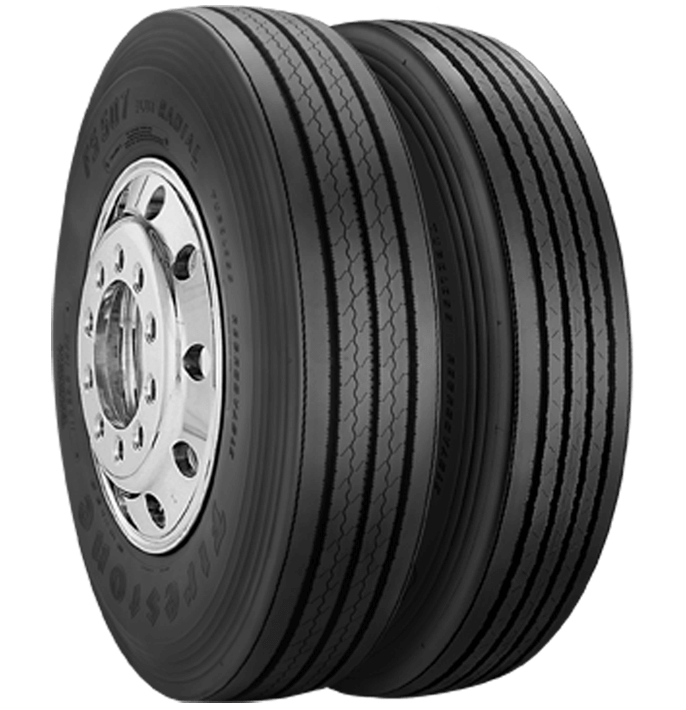

FS507 PLUS™

Firestone's FS507 Plus is a radial tire designed for steer axle application in long- and regional-haul service with long-lasting tread wear. It is EPA SmartWay verified and CARB compliant. This steer tire has features to protect against uneven wear and helps contribute to reduced rolling resistance.

Specifications

Selection

Choose Size (Ply/Star Rating)

Choose a Unit

Standard

Metric

Details

Application
Article Number: 12392
Tire Size: 295/75R22.5
Compound
Ply/Star Rating: 16
Tread Depth (32nds) (mm): 19 15
Load Range: H
Overall Width (in) (mm): 11.5 292
Overall Diameter (in) (mm): 40.2 1021
Max. Tire Load Dual (lbs) (kg): 6610 3000
Max. Speed (mph) (km/h): 75 121
Meas. Rim (in) (mm): 8.25 210
Overall Width Loaded (in) (mm): 12.6 320
Static Loaded Radius (in) (mm): 18.8 478
Max. Tire Load Single (lbs) (kg): 7160 3250
Inflation Pressure (psi) (kPa): 123 850
Revolutions Per (mile) (km): 516 321

Specialized Features

FEATURES & BENEFITS

: Stress relief sipes fight irregular wear along main ribs by absorbing rib edge stresses in the footprint for long, even wear.
: Shoulder-wear protection helps minimize irregular wear at the shoulder ribs for long tread life.
: Continuous shoulder rib offers long, even wear and reduced rolling resistance.
