FD692 TIRE
Specifications
Selection
Choose a Unit
TO SEE STORE INVENTORY
YOUR STORE
Details
- Application
- Less Than Truckload, Truckload
- Article Number
- 3154
- Tire Size
- 285/75R24.5
- Compound
- Ply/Star Rating
- 14
- Tread Depth (32nds) (mm)
- 26 20.6
- Load Range
- G
- Overall Width (in) (mm)
- 11.2 284
- Overall Diameter (in) (mm)
- 41.7 1059
- Max. Tire Load Dual (lbs) (kg)
- 5675 2575
- Max. Speed (mph) (km/h)
- 75 121
- Meas. Rim (in) (mm)
- 8.25 210
- Overall Width Loaded (in) (mm)
- 12.3 312
- Static Loaded Radius (in) (mm)
- 19.5 495
- Max. Tire Load Single (lbs) (kg)
- 6175 2800
- Inflation Pressure (psi) (kPa)
- 110 760
- Revolutions Per (mile) (km)
- 498 310
- Application
- Less Than Truckload, Truckload
- Article Number
- 3157
- Tire Size
- 11R24.5
- Compound
- Ply/Star Rating
- 14
- Tread Depth (32nds) (mm)
- 26 20.6
- Load Range
- G
- Overall Width (in) (mm)
- 11.2 284
- Overall Diameter (in) (mm)
- 43.6 1107
- Max. Tire Load Dual (lbs) (kg)
- 6005 2725
- Max. Speed (mph) (km/h)
- 75 121
- Meas. Rim (in) (mm)
- 8.25 210
- Overall Width Loaded (in) (mm)
- 12.3 312
- Static Loaded Radius (in) (mm)
- 20.4 518
- Max. Tire Load Single (lbs) (kg)
- 6610 3000
- Inflation Pressure (psi) (kPa)
- 105 720
- Revolutions Per (mile) (km)
- 477 296
- Application
- Less Than Truckload, Truckload
- Article Number
- 3155
- Tire Size
- 11R22.5
- Compound
- Ply/Star Rating
- 14
- Tread Depth (32nds) (mm)
- 26 20.6
- Load Range
- G
- Overall Width (in) (mm)
- 11.2 284
- Overall Diameter (in) (mm)
- 41.7 1059
- Max. Tire Load Dual (lbs) (kg)
- 5840 2650
- Max. Speed (mph) (km/h)
- 75 121
- Meas. Rim (in) (mm)
- 8.25 210
- Overall Width Loaded (in) (mm)
- 12.3 312
- Static Loaded Radius (in) (mm)
- 19.4 493
- Max. Tire Load Single (lbs) (kg)
- 6175 2800
- Inflation Pressure (psi) (kPa)
- 105 720
- Revolutions Per (mile) (km)
- 498 309
- Application
- Less Than Truckload, Truckload
- Article Number
- 3153
- Tire Size
- 295/75R22.5
- Compound
- Ply/Star Rating
- 14
- Tread Depth (32nds) (mm)
- 26 20.6
- Load Range
- G
- Overall Width (in) (mm)
- 11.3 287
- Overall Diameter (in) (mm)
- 40.4 1026
- Max. Tire Load Dual (lbs) (kg)
- 5675 2575
- Max. Speed (mph) (km/h)
- 75 121
- Meas. Rim (in) (mm)
- 8.25 210
- Overall Width Loaded (in) (mm)
- 12.4 315
- Static Loaded Radius (in) (mm)
- 18.8 478
- Max. Tire Load Single (lbs) (kg)
- 6175 2800
- Inflation Pressure (psi) (kPa)
- 110 760
- Revolutions Per (mile) (km)
- 514 320
- Application
- Article Number
- 4190
- Tire Size
- 295/75R22.5
- Compound
- Ply/Star Rating
- 14
- Tread Depth (32nds) (mm)
- 30 23.8
- Load Range
- G
- Overall Width (in) (mm)
- 11.4 290
- Overall Diameter (in) (mm)
- 40.8 1036
- Max. Tire Load Dual (lbs) (kg)
- 5675 2575
- Max. Speed (mph) (km/h)
- 75 121
- Meas. Rim (in) (mm)
- 8.25 210
- Overall Width Loaded (in) (mm)
- 12.5 318
- Static Loaded Radius (in) (mm)
- 19 483
- Max. Tire Load Single (lbs) (kg)
- 6175 2800
- Inflation Pressure (psi) (kPa)
- 110 760
- Revolutions Per (mile) (km)
- 510 317
- Application
- Article Number
- 4192
- Tire Size
- 285/75R24.5
- Compound
- Ply/Star Rating
- 14
- Tread Depth (32nds) (mm)
- 30 23.8
- Load Range
- G
- Overall Width (in) (mm)
- 11.3 287
- Overall Diameter (in) (mm)
- 42.1 1069
- Max. Tire Load Dual (lbs) (kg)
- 5675 2575
- Max. Speed (mph) (km/h)
- 75 121
- Meas. Rim (in) (mm)
- 8.25 210
- Overall Width Loaded (in) (mm)
- 12.4 315
- Static Loaded Radius (in) (mm)
- 19.7 500
- Max. Tire Load Single (lbs) (kg)
- 6175 2800
- Inflation Pressure (psi) (kPa)
- 110 760
- Revolutions Per (mile) (km)
- 494 307
- Application
- Article Number
- 4193
- Tire Size
- 11R22.5
- Compound
- Ply/Star Rating
- 16
- Tread Depth (32nds) (mm)
- 30 23.8
- Load Range
- H
- Overall Width (in) (mm)
- 11.3 287
- Overall Diameter (in) (mm)
- 42.1 1069
- Max. Tire Load Dual (lbs) (kg)
- 6005 2725
- Max. Speed (mph) (km/h)
- 75 121
- Meas. Rim (in) (mm)
- 8.25 210
- Overall Width Loaded (in) (mm)
- 12.4 315
- Static Loaded Radius (in) (mm)
- 19.6 498
- Max. Tire Load Single (lbs) (kg)
- 6610 3000
- Inflation Pressure (psi) (kPa)
- 120 830
- Revolutions Per (mile) (km)
- 494 307
- Application
- Article Number
- 4194
- Tire Size
- 11R24.5
- Compound
- Ply/Star Rating
- 16
- Tread Depth (32nds) (mm)
- 30 23.8
- Load Range
- H
- Overall Width (in) (mm)
- 11.3 287
- Overall Diameter (in) (mm)
- 44.1 1120
- Max. Tire Load Dual (lbs) (kg)
- 6610 3000
- Max. Speed (mph) (km/h)
- 75 121
- Meas. Rim (in) (mm)
- 8.25 210
- Overall Width Loaded (in) (mm)
- 12.4 315
- Static Loaded Radius (in) (mm)
- 20.6 523
- Max. Tire Load Single (lbs) (kg)
- 7160 3250
- Inflation Pressure (psi) (kPa)
- 120 830
- Revolutions Per (mile) (km)
- 471 293
Specialized Features

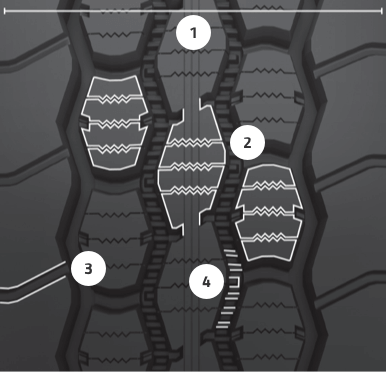

- FUEL EFFICIENT AND AGGRESSIVE TREAD DESIGN
- SmartWay verified and CARB Compliant without compromising on all-weather dependability and traction
- MULTIPLE BITING EDGES
- 400% more biting edges than the previous generation FD6911, allowing for improved wet and snow traction. 1Comparison based on Firestone FD692 tire vs. Firestone FD691 tire from internal testing. Results may vary.
- SHOULDER SLOTS
- confident control in rain and snow with increased shoulder slots help evacuate water
- STONE REJECTOR PLATFORMS
- to increase retreadability of the casing, Stone Rejector Platform helps to prevent trapped stones from pushing into the tread groove and piercing belt layer.
- HIGH RIGIDITY TREAD PATTERN
- Offers long, even wear and reduced rolling resistance by controlling movement of the ribs and blocks during rotation.
- AGRESSIVE TREAD DESIGN
- biting edges and shoulder slots
- STONE REJECTOR PLATFORMS
- help prevent the retention of casing-damaging stones for enhanced retreadability

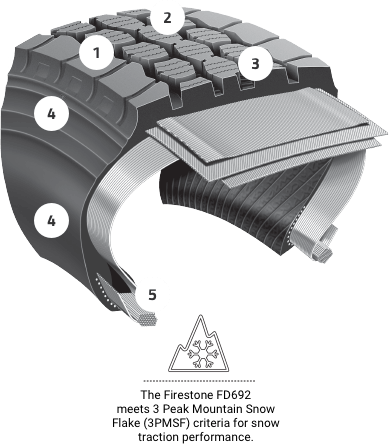

- OPTIMIZED BEAD DESIGN
- lowers rolling resistance and improves fuel economy
- INNOVATIVE SIDEWALL DESIGN
- Reduces overall tire weight to improve fuel efficiency without sacrificing durability
- PROPRIETARY SIDEWALL TECHNOLOGY
- Proprietary compound designed to limit heat loss to help improve fuel efficiency, both when new and when retreaded
