V-STEEL SMOOTH TREAD MINE SERVICE

V-Steel Smooth Tread Mine Service 2 (VSMS2)

Innovative sidewall shape — delivers a 30% decrease in the frequency of sidewall cuts reaching the ply, which increases the total life by 5%¹

Tread Wear Indicator

120/32nds & 132/32nds deep tread — for severe operating environments

Specifications

Selection

Choose Size (Ply/Star Rating)

Choose a Unit

Standard

Metric

Details

Machine Type: Wheel Loader, Loader, Shuttle Car, Drills, Roof Bolters
Article Number: 4604
Tire Size: 26.5R25
Compound: D2A
Ply/Star Rating: 2* RATING
TRA: L-5S LOADER
Tread Depth (32nds) (mm): 120 95.2
Gross Weight (lbs) (kg): 1777.100 806

Machine Type: Shuttle Car, Drills, Roof Bolters
Article Number: 4605
Tire Size: 29.5R29
Compound: D2A
Ply/Star Rating: 2* RATING
TRA: L-5S LOADER
Tread Depth (32nds) (mm): 132 104.7
Gross Weight (lbs) (kg): 2449.300 1111

Machine Type: Shuttle Car, Drills, Roof Bolters
Article Number: 4724
Tire Size: 17.5R25
Compound: D2A
Ply/Star Rating: 2* RATING
TRA: L-5S LOADER
Tread Depth (32nds) (mm): 86 68.5
Gross Weight (lbs) (kg): 642.000 291

Machine Type: Wheel Loader, Loader
Article Number: 6392
Tire Size: 29.5R25
Compound: D2A
Ply/Star Rating: 2* RATING
TRA: L-5S LOADER
Tread Depth (32nds) (mm): 131 104
Gross Weight (lbs) (kg): 2405.000 1091

Machine Type
Article Number: 11426
Tire Size: 26.5R25
Compound: L2A
Ply/Star Rating: 2* SUBTERRANEAN
TRA: L-5S LOADER
Tread Depth (32nds) (mm): 120 95
Gross Weight (lbs) (kg): 1830.000 830

Machine Type
Article Number: 12356
Tire Size: 29.5R29
Compound: L2A
Ply/Star Rating: 2* SUBTERRANEAN
TRA: L-5S LOADER
Tread Depth (32nds) (mm): 132 104.6
Gross Weight (lbs) (kg): 2449.000 1111

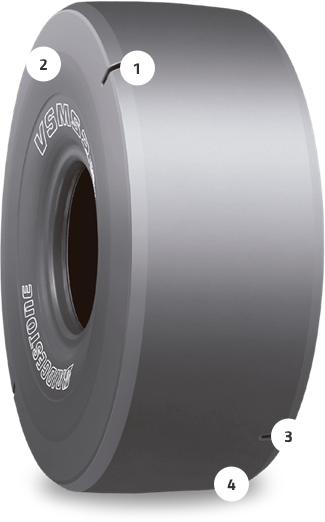

Specialized Features

Tread

TREAD WEAR INDICATOR: Shows depth of wear on tire
SIDEWALL SHAPE: Delivers a 30% decrease++ in the frequency of sidewall cuts reaching the ply, which increases the total life by 5%++
86 - 132/32NDS DEEP TREAD: For long wear and protection in severe operating environments
86 - 132/32NDS DEEP TREAD: For long wear and protection in severe operating environments
