M713 ECOPIA™

Less Than Truckload, Specialized Transport, Truckload

Fuel-Efficient Drive Radial

The M713 Ecopia™ tire is an ultra-fuel-efficient drive radial designed for tandem-axle applications in long-haul and regional service. A breakthrough in low rolling resistance through proprietary compounds and design, the M713 tire is engineered to provide an 8% improvement in rolling resistance while increasing tread life by 15% over the M710 tire. The M713 Ecopia™ is EPA SmartWay verified and California Air Resources Board (CARB) compliant.

Specifications

Selection

Choose Size (Ply/Star Rating)

Choose a Unit

Standard

Metric

Details

Application: Less Than Truckload, Specialized Transport, Truckload
Article Number: 1050
Tire Size: 295/75R22.5
Compound
Ply/Star Rating: 14
Tread Depth (32nds) (mm): 24 19.1
Load Range: G
Overall Width (in) (mm): 11.5 292
Overall Diameter (in) (mm): 40.5 1029
Max. Tire Load Dual (lbs) (kg): 5675 2575
Max. Speed (mph) (km/h): 75 121
Meas. Rim (in) (mm): 8.25 210
Overall Width Loaded (in) (mm): 12.7 323
Static Loaded Radius (in) (mm): 18.9 480
Max. Tire Load Single (lbs) (kg): 6175 2800
Inflation Pressure (psi) (kPa): 110 760
Revolutions Per (mile) (km): 513 319

Application: Less Than Truckload, Specialized Transport, Truckload
Article Number: 3122
Tire Size: 285/75R24.5
Compound
Ply/Star Rating: 14
Tread Depth (32nds) (mm): 24 19.1
Load Range: G
Overall Width (in) (mm): 11.1 282
Overall Diameter (in) (mm): 41.6 1057
Max. Tire Load Dual (lbs) (kg): 5675 2575
Max. Speed (mph) (km/h): 75 121
Meas. Rim (in) (mm): 8.25 210
Overall Width Loaded (in) (mm): 12.3 312
Static Loaded Radius (in) (mm): 19.5 495
Max. Tire Load Single (lbs) (kg): 6175 2800
Inflation Pressure (psi) (kPa): 110 760
Revolutions Per (mile) (km): 500 310

Application: Less Than Truckload, Specialized Transport, Truckload
Article Number: 3123
Tire Size: 11R22.5
Compound
Ply/Star Rating: 14
Tread Depth (32nds) (mm): 24 19.1
Load Range: G
Overall Width (in) (mm): 11.3 287
Overall Diameter (in) (mm): 41.7 1059
Max. Tire Load Dual (lbs) (kg): 5840 2650
Max. Speed (mph) (km/h): 75 121
Meas. Rim (in) (mm): 8.25 210
Overall Width Loaded (in) (mm): 12.4 315
Static Loaded Radius (in) (mm): 19.4 493
Max. Tire Load Single (lbs) (kg): 6175 2800
Inflation Pressure (psi) (kPa): 105 720
Revolutions Per (mile) (km): 499 310

Application: Less Than Truckload, Specialized Transport, Truckload
Article Number: 3124
Tire Size: 11R24.5
Compound
Ply/Star Rating: 14
Tread Depth (32nds) (mm): 24 19.1
Load Range: G
Overall Width (in) (mm): 11.3 287
Overall Diameter (in) (mm): 43.5 1105
Max. Tire Load Dual (lbs) (kg): 6005 2725
Max. Speed (mph) (km/h): 75 121
Meas. Rim (in) (mm): 8.25 210
Overall Width Loaded (in) (mm): 12.4 315
Static Loaded Radius (in) (mm): 20.3 516
Max. Tire Load Single (lbs) (kg): 6610 3000
Inflation Pressure (psi) (kPa): 105 720
Revolutions Per (mile) (km): 477 296

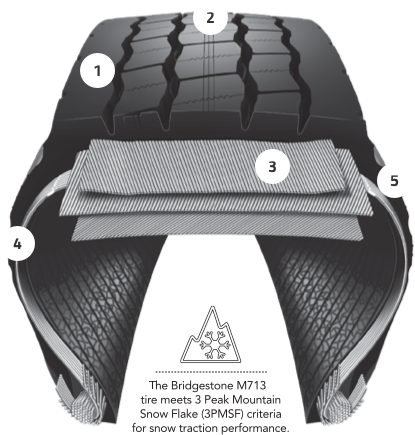

NanoPro-Tech™ Compound: Patented NanoPro-Tech polymer technology limits energy loss for improved rolling resistance andoptimum fuel efficiency.
High Rigidity Tread Pattern: Controls movement of the tread blocks and ribs for less tread wear and lower rolling resistance.
Optimized Belt Package: Achieves durability and retreadability while delivering improved rolling resistance.
IntelliShapeTM Sidewall: Contains less bead filler volume, reducing tire weight and minimizing rolling resistance for enhanced fuel efficiency.
Fuel Saver Sidewall: Limits energy loss using a proprietary sidewall compound to help conserve fuel, both when new and retreaded.

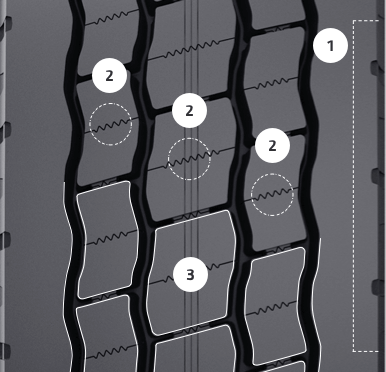

Continuous Shoulder Design: Distributes weight and torque uniformly to fight irregular wear for long tread life and overall even wear.
3D Siping: Provides 130% more biting edges for traction.
Optimized Tread Pattern: New design maximizes tread wear volume for long original life.
